Ductless Heat Pump Explained

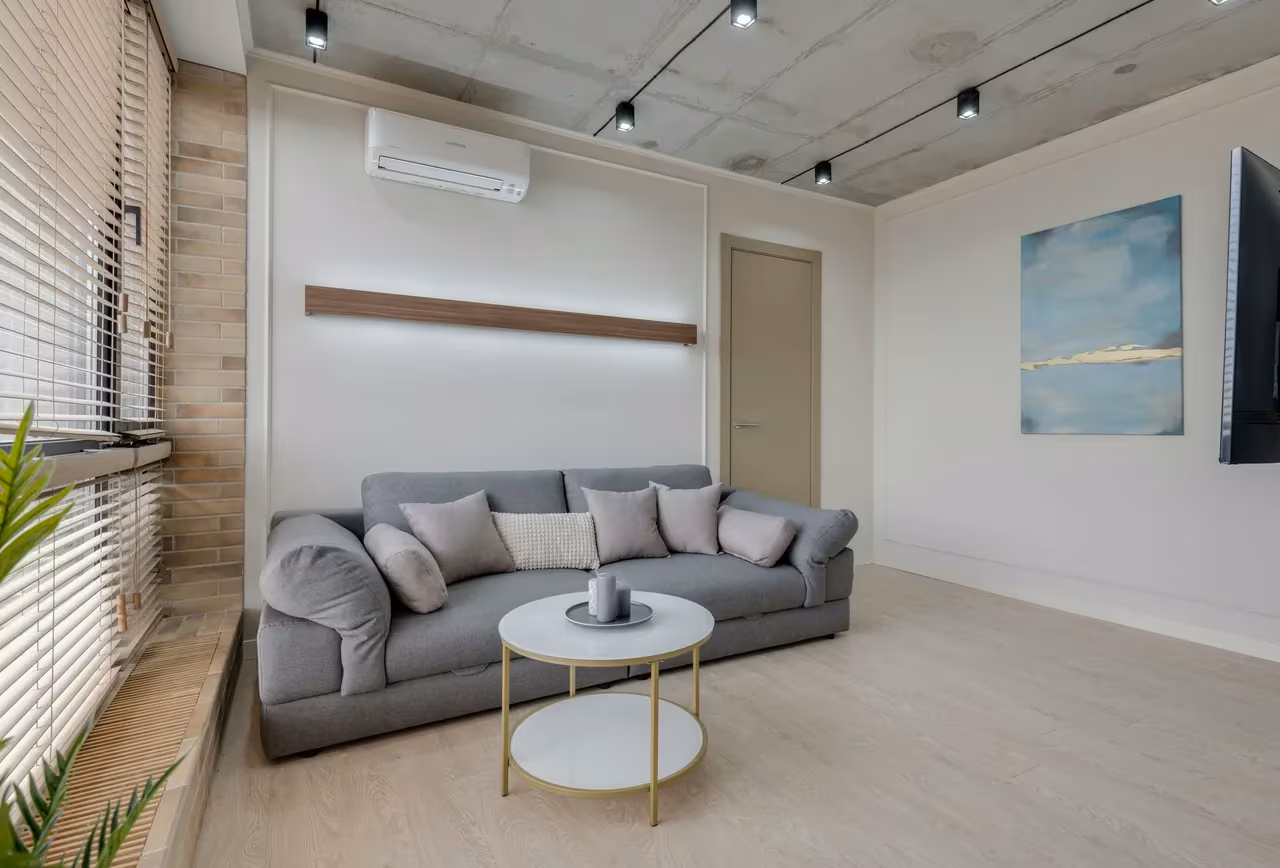

Indoor wall- or ceiling-mounted head units distribute conditioned air directly into each room. Connected via small (3" diameter) refrigerant line + condensate drain to the outdoor compressor. No ductwork required.
Configurations
- Single-zone: 1 outdoor + 1 indoor head. $8K-$12K. Heats/cools one room.
- Multi-zone (2-4 heads): 1 outdoor + multiple indoor heads. $14K-$22K. Heats/cools multiple rooms with individual zone control.
- Multi-zone (5-8 heads): Larger outdoor + 5-8 heads. $20K-$32K. Whole-home equivalent.
Install Time
Single-zone: 1 day. Multi-zone (3-4 heads): 2-3 days. 8-head whole-home: 4-6 days.
Ducted Heat Pump Explained
Central air handler with refrigerant coil connects to whole-house duct system. Outdoor compressor delivers refrigerant. Single thermostat controls whole-home temperature.
Configurations
- Single-stage: lower-cost option, 1 thermostat, no zoning
- 2-stage / variable-speed: most common in MA, modulates capacity to match load
- With zoning dampers: single-system multi-zone via motorized duct dampers ($1,200-$2,400 add)
Existing Ductwork Check
Pre-1990 ducts often need upsizing for heat pump airflow (heat pumps move 15-25% more CFM/ton than furnaces). Pre-existing leakage in attic/basement ducts needs sealing. Pro Build's standard: duct evaluation included in every Manual J site visit; duct improvements rebated under Mass Save.
Decision Framework
Pro Build's recommendation logic:
| Condition | Recommendation |
|---|---|
| Existing ducts in good condition | Ducted (preserves single thermostat, hidden equipment) |
| No ducts (radiator-heated home) | Ductless (no duct retrofit needed) |
| Retrofit avoiding wall opening | Ductless (less invasive) |
| Want zone-level control | Ductless (each head separate thermostat) OR ducted with zone dampers |
| Aesthetic concern about visible indoor units | Ducted (registers in walls/ceilings) |
| Partial-home electrification (some rooms now, others later) | Ductless (modular) |
| Whole-home replace existing AC + furnace | Ducted (uses existing ducts, simpler) |
Frequently Asked Questions
Are ductless mini-splits efficient as ducted systems?
Marginally more efficient — no duct losses (~10-15% energy savings vs ducted with leaky ducts). Less heat exchange surface area limits absolute capacity. For typical MA homes, the efficiency difference is small; install considerations dominate the choice.
How obvious are ductless indoor units?
Wall-mounted heads are visible — typically 32" wide × 12" tall. Ceiling-cassette units (4-way blow) are flush-mounted in suspended ceiling. Floor-mounted units are knee-height baseboard style. Concealed-duct mini-splits hide unit in soffit or above closet, with small registers visible. Pro Build typically uses concealed-duct in primary living areas + wall-mount in bedrooms for the 'invisible HVAC' aesthetic.
Can I have one outdoor unit serve multiple zones?
Yes — multi-zone outdoor units support 2-8 indoor heads on one outdoor unit. Mitsubishi MXZ series + Fujitsu Halcyon AOU series both support up to 8 heads. Trade-off: larger outdoor unit, slightly higher install complexity, all heads share refrigerant pressure (so simultaneous cooling + heating across zones not possible).
Can I run ductless in heating + cooling simultaneously across zones?
Only with 2-pipe Variable Refrigerant Flow (VRF) systems — premium commercial-grade ($30K-$80K install). Standard residential multi-zone runs all zones in same mode (heat or cool) at any moment. Most MA homes don't need simultaneous mixed-mode operation.
Do ductless heat pumps work as well in MA winters as ducted?
Yes — both ductless and ducted use same outdoor unit (cold-climate compressor). Performance at 5°F is identical. Choice between ductless/ducted is about installation + comfort, not winter performance.
Does Mass Save rebate differ between ductless and ducted?
Same $10K standard / $16K income-eligible whole-home rebate for both. Partial-home ductless (1-3 zones, doesn't replace primary heating): $1,250 per ton up to $10K cap. Whole-home install (ductless OR ducted) qualifies for full rebate.
